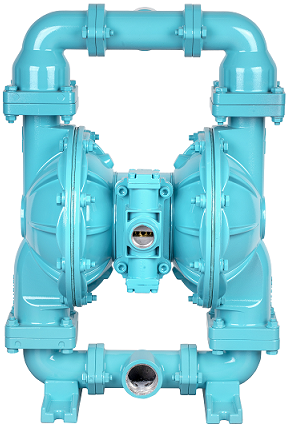

DP 15 Metallic Diaphragm Pump

Diapump DP 15 Metallic Diaphragm Pump

Connection Inlet-Outlet: 1½"

Connection Type: BSP (Tapered)

Capacity Range: 0 - 400 lpm

Pump Head: 84 mwc

Max. Suction Lift: 6 - 8 m

Max. Solid Particle Size: 6 mm

Pump Casing Materials: Aluminum, Cast Iron, Stainless Steel (316)

Pump Inner Materials: Neoprene, Buna-n, PTFE, FKM, Santopren, EPDM

Air Line: Aluminum (Intermediate Bracket, Air Valve, Pilot Valve, Air Inlet Cap, Inner Chamber)

Air Connection: 3/4"

Max. Operating Air Pressure: 0-8,4 bar

Air Consumption: 16 - 85 m3/h
